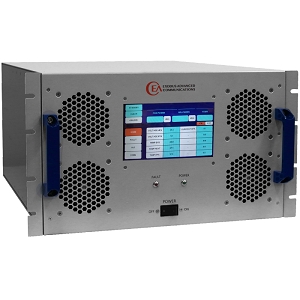

AMP20129
EMC Power Amplifiers by Exodus Advanced Communications
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Exodus Advanced Communications.
The AMP20129 from Exodus Advanced Communications is a EMC Power Amplifiers with Frequency 1 to 1000 MHz, Gain 55 to 57 dB, Gain Control Range` 20 dB, Power (dBm) 53.01 to 56.99 dBm, Power (W) 200 to 500 W. More details for AMP20129 can be seen below.
Product Specifications
Product Details
- Part NumberAMP20129
- ManufacturerExodus Advanced Communications
- DescriptionSolid State Power Amplifier From 1 to 1000 MHz
General Parameters
- Frequency1 to 1000 MHz
- Gain55 to 57 dB
- Gain Control Range`20 dB
- Gain flatness4 dB
- Power (dBm)53.01 to 56.99 dBm
- Power (W)200 to 500 W
- P1dB (dBm)53.01 to 54.77 dBm
- Saturated Power54.75 to 57 dBm
- Input Power8 dBm
- TypeSolid State Power Amplifier
- AC Voltage200 to 240 V
- Power Consumption2000 W
- Impedance50 Ohms
- Return Loss-10 dB
- Input Return Loss-10 dB
- Output Return Loss-10 dB
- VSWR4.00:1
- EMC StandardsIEC 60320-C14
- InterfaceEthernet, RJ-45, RS-422, RS-485, USB
- ApplicationsEMI/RFI Lab, General RF/EMC Testing
- Package TypeBenchtop / Rackmount
- ConnectorsN Type, N Type - Female
- Input ConnectorN Type - Female
- Output connectorN Type - Female
- Cooling OptionsBuilt-in Air-Liquid Cooling
- Weight35 kg
- Operating Temperature0 to 50 Degree C
- Storage Temperature-40 to 85 Degree C
Technical Documents
- Datasheet
