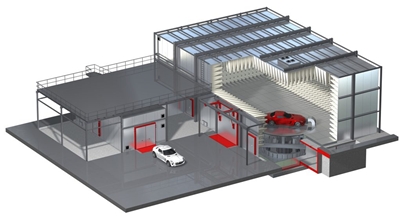

The SAC-10VC-6H from Frankonia is an Anechoic Chamber designed for full-compliance and customizable EMI/EMS testing of vehicles from 9 kHz to 18 GHz or 26 MHz to 40 GHz. It has a measuring distance of 10.0 m as per CISPR 16-1-4, CISPR 25, CISPR 12, and EN 61000-4-3 standards. This anechoic chamber is engineered to meet ECE R10.5 requirements and has an integrated dynamometer for up to ø7.0 m. It has Frankosorb® optimized long-pyramid absorber lining with P2400  and or hybrid Frankosorb® optimized hybrid absorber lining with ferrite F006, H600, H1000, and Turbine H1300. These absorber linings are both non-combustible or hardly inflammable according to DIN EN 13501-1 standards.

The SAC-10VC-6H is based on advanced nano thin-film technology and ensures long-term stability, durability, and consistent RF performance, creating optimal conditions for radiated emission and immunity tests. It has specialized turntable system that is highly adjustable to any vehicle type, size and weight and is suitable for repeatable vehicle testing, delivering a fool-proof EMC testing environment for commercial, military, and out-of-the-range applications. This anechoic has external dimensions of 23.030 x 14.480 x 6.300 m and a load capacity of up to 80,000 kg.
