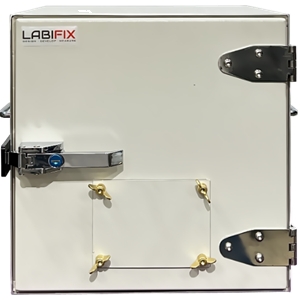

The LBX1760 from LabiFix Innovations is an RF Shielded Test Enclosure that covers frequencies from 20 MHz to 12 GHz. It has a shielding effectiveness of up to 90 dB and is designed and developed for wireless device testing. This shielded enclosure provides high EMC/RFI shielding against RF interference, even in sensitive RF environments. It has a high-performance RF absorber lining and EMI filters on data ports & power lines. This enclosure also has an RF gasket system and high-performance shielded air vents for adequate air flow. It has Ethernet &ndash 10M, 100M, 1G & 10G, USB 3.0, RJ45 & DB9 interfaces and SMA, N Type, BNC & TNC interfaces. This shielded enclosure is ideal for Wi-Fi 802.11 &ndash All series, wireless device testing, R&D & quality assurance tests, cellular 4G, 5G, LTE, WiMAX, Bluetooth & Zigbee, forensics & security, and wireless medical device applications.

Product Specifications

Product Details

  • Part Number
    LBX1760
  • Manufacturer
    LabiFix Innovations
  • Description
    RF Shielded Test Enclosure from 20 MHz to 12 GHz

General Parameters

  • Type
    Bench-top / Table-Top
  • Configuration
    Fixed
  • Frequency
    20 MHz to 12 GHz
  • Isolation
    80 to 90 dB
  • Absorber
    1” RF Absorber
  • Applications
    Wireless Device Testing, Wi-Fi Testing, Bluetooth Testing, Cellular Testing, R&D and QA Testing
  • Chambers
    Dual Chamber
  • Interface
    RF Connectors, USB, Ethernet, DB9 Serial
  • Connectors
    SMA, N Type, BNC, TNC, USB, RJ45, DB9
  • Internal Dimensions
    12" × 12" × 12"
  • External Dimensions
    14" × 14" × 14"
  • Dimensions
    14" × 14" × 14"
  • Interior Height
    12 in
  • Interior Length
    12 in
  • Interior Width
    12 in
  • Package Type
    Benchtop
  • AC Voltage
    110 to 270 V
