Model 5260

Shielded Test Enclosure by ETS-Lindgren
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to ETS-Lindgren.

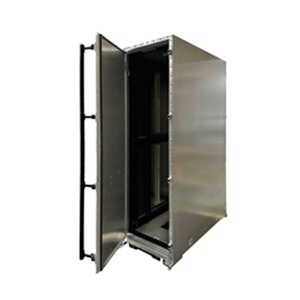

The Model 5260 from ETS Lindgren is a Shielded Test Enclosure that has a shielding attenuation of up to 100 dB at 10 GHz. It has a lightweight custom aluminum shielding system, which incorporates vents and an optional rack-mounted fan tray for applications requiring cooling. This enclosure utilizes ETS-Lindgren’s RFCD Door Technology, which enables front and rear doors with full access to the internal rack. It also includes a customizable penetration panel to accommodate an assortment of feed-through requirements. This shielded test enclosure is mounted on casters and is just under 2.13 m (7 ft) in height, making it mobile and easy to move through a typical door. It has leveling feet that extend to prevent movement when mobility is not required. This shielded test enclosure has a 42U rack and a load capacity of up to 1360.77 kg. It is ideal for equipment security, data center equipment, mission-critical equipment, lab, and production equipment applications.

Product Specifications

Product Details

  • Part Number
    Model 5260
  • Manufacturer
    ETS-Lindgren
  • Description
    42U Shielded Test Enclosure with Attenuation up to 100 dB

General Parameters

  • Type
    Rack Mount
  • Configuration
    Portable
  • Opening Type
    Front
  • Frequency
    1 kHz to 10 GHz
  • Isolation
    10 to 100 dB
  • Applications
    Equipment Security, Data Center Equipment, Mission Critical Equipment, Lab Equipment, Production Equipment, Coexistence Concerns, Mobile Lab Equipment, HEMP Protection, EMP Protection, IEMI Protection
  • Chambers
    Single Chamber
  • External Dimensions
    51.0 in x 24.0 in x 82.25 in
  • Dimensions
    51.0 in x 24.0 in x 82.25 in
  • Interior Height
    82.25 in
  • Package Type
    Rackmount
  • Weight
    191 kg (420 lb)
  • AC Voltage
    120 V
  • Additional Specs
    3000 lb static load rack capacity
