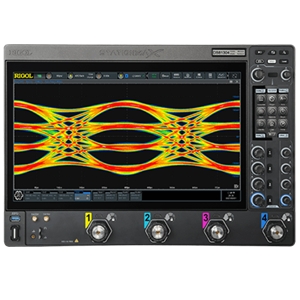

The DS80000 from Rigol Technologies is a Oscilloscopes with AC Voltage 100 to 240 V, Bandwidth 13 GHz, Capacitance 19 pF, Memory Depth 4 Gpts, Sample rate 40 GSa/s. More details for DS80000 can be seen below.
Product Specifications
Product Details
- Part NumberDS80000
- ManufacturerRigol Technologies
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Peak Detection, Average , High Resolution
- ADC Resolution8 bits
- Bandwidth Limit20 MHz, 250 MHz
- Channel Skew±5 ns
- DC Current5 A (Fuse)
- DC Gain Accuracy±1 to ±2%
- Dimensions448 x 310 x 522.6 mm (W x H x D)
- Display15.6 Inches Capacitive multitouch screen
- FFTYes
- Harmonic Distortion-40 dBc
- Input CouplingDC, AC, GND
- Input Impedance50 Ohms, 1 MOhms
- InterfaceHDMI, RS-232, UART, I2C, SPI, I2S, USB 2.0
- Offset Range±1 to ±100 V
- Operating Temperature0 to 50 Degree C
- Power Consumption400 VA
- Pulse Width10 ns
- Rise Time9 ns
- Safety StandardsEN 61010-1:2019, EN 61010-031:2015, IEC 61010-1:2016, IEC 61010-2-030:2017, UL 61010-1:2012 R7, UL 61010-2-31:2017 R2, CAN/CSA-22.2 No. 61010-1-12:2017, CAN/CSA-22.2 No. 61010-2-30:2018, CAN/CSA-22.2 No. 61010-031-07:201
- Spurious Free Dynamic Range-40 dBc
- Time Base Accuracy±0.2 ppm
- Time Base Range1 ns to 500 s/div, 2 ns/div to 500 s/div
- TriggerEdge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold
- TypeDigital Storage Oscilloscope
- Vertical Resolution12 bits
- Voltage Swing500 mVp-p
- Warranty3 Years + 18 Months
- Waveform Update Rates250000 wfms/s
- Weight28 kg
- AC Voltage100 to 240 V
- Bandwidth13 GHz
- Capacitance19 pF
- Memory Depth4 Gpts
- Sample rate40 GSa/s
