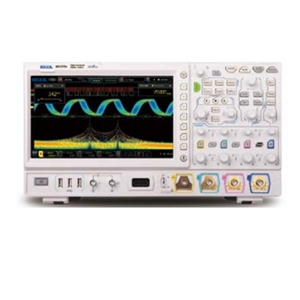

The MSO/DS7000 from Rigol Technologies is a Oscilloscopes with AC Voltage 100 to 240 V, Bandwidth 500 MHz, Capacitance 18 pF, Memory Depth 500 Mpts, Sample rate 10 GSa/s. More details for MSO/DS7000 can be seen below.
Product Specifications
Product Details
- Part NumberMSO/DS7000
- ManufacturerRigol Technologies
- DescriptionMixed Signal Oscilloscope
General Parameters
- Acquisition ModeNormal, Peak Detection, Average , High Resolution
- ADC Resolution8 bits
- Ch to Ch Deskew±100 ns
- Channel Skew±5 ns
- DC Current5 A (Fuse)
- DC Gain Accuracy±2 to ±3%
- Dimensions410 x 224 x 135 mm (W x H x D)
- Display10.1 Inches capacitive multi-touch screen
- FFTYes
- Harmonic Distortion-55 to -40 dBc
- Input CouplingDC, AC, GND
- Input Impedance50 Ohms, 1 MOhms
- InterfaceRS-232, UART, I2C, SPI
- Offset Range±0.6 to ±100 V
- Operating Temperature0 to 50 Degree C
- Power Consumption400 VA
- Pulse Width5 ns
- Rise Time9 ns
- Safety StandardsEN 61010-1:2019, EN 61010-031:2015, IEC 61010-1:2016, IEC 61010-2-030:2017, UL 61010-1:2012 R7, UL 61010-2-31:2017 R2, CAN/CSA-22.2 No. 61010-1-12:2017, CAN/CSA-22.2 No. 61010-2-30:2018, CAN/CSA-22.2 No. 61010-031-07:201
- Spurious Free Dynamic Range-65 to -50 dBc
- Time Base Accuracy±2 ppm
- Time Base Range500 ps/div to 500 s/div
- TriggerEdge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold
- TypeMixed Signal Oscilloscope
- Vertical Resolution8 bits
- Voltage Swing500 mVp-p
- Warranty3 Years + 18 Months
- Waveform Update Rates600000 wfms/s
- Weight3.9 Kg
- AC Voltage100 to 240 V
- Bandwidth500 MHz
- Capacitance18 pF
- Memory Depth500 Mpts
- Sample rate10 GSa/s
