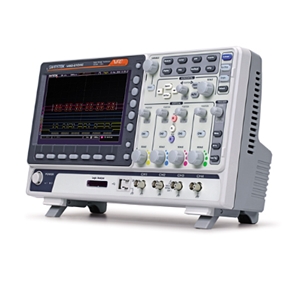

MSO‐2104E(A)
Oscilloscopes by Good Will Instrument Co., Ltd.
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Good Will Instrument Co., Ltd..
The MSO‐2104E(A) from Good Will Instrument Co., Ltd. is a Oscilloscopes with Bandwidth DC to 100 MHz, Memory Depth 10 Mpts, Sample rate 1 GSa/s. More details for MSO‐2104E(A) can be seen below.
Product Specifications
Product Details
- Part NumberMSO‐2104E(A)
- ManufacturerGood Will Instrument Co., Ltd.
- DescriptionMixed‑Signal Oscilloscope
General Parameters
- Acquisition ModeNormal, Average, Peak Detect, Single
- ADC Resolution8 bits
- Bandwidth Flatness0.5 to 1 dB
- Bandwidth Limit20 MHz
- DC Gain Accuracy±3% to ±5%
- Dimensions384 x 208 x 127.3 mm
- Display8 Inches TFT LCD WVGA color display
- Display Resolution800 × 480
- External Trigger ChannelYes
- FFTYes
- Harmonic Distortion-40 dBc
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms
- InterfaceRJ‐45, USB 2.0
- Offset Range0.5V to 250V
- Operating Temperature0 to 50 Degree C
- Peak Detect2 ns
- Pulse Width30 ns
- Rise Time3.5 ns
- SNR40 dB
- Time Base Accuracy±50 ppm
- Time Base Range1 ns/div to 100 s/div
- TriggerEdge, Video, Glitch, Pulse
- TypeMixed Signal Oscilloscope
- Voltage Swing±250 mV
- Waveform Update Rates120000 wfms/s
- Weight2.8 kg
- BandwidthDC to 100 MHz
- Memory Depth10 Mpts
- Sample rate1 GSa/s
