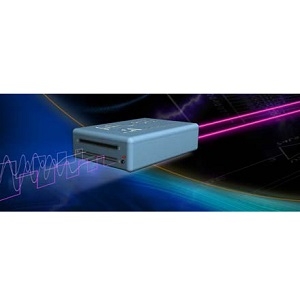

The AFL-6416 from EMCgear is a Fiber Optic Link with Fiber Length 100 Km, Frequency DC to 25 KHz, Input Voltage -10 to 10 V, Output Voltage Level -10 to 10 V, Supply Voltage 10 to 14 V. More details for AFL-6416 can be seen below.
Product Specifications
Product Details
- Part NumberAFL-6416
- ManufacturerEMCgear
- DescriptionAnalog & Digital Fibre Optic Link Data Acquisition System
General Parameters
- ApplicationsTransfer an analog signal from a noisy environment, point Isolation of the signal from high voltage sources, point Eliminating ground loops, point Accuracy and high Signal/Noise Ratio, point Bi-directional data acquisition and control, point Excellent sys
- Bits16 Bit
- Channels16 Channels, 32 Channels
- InterfaceRS-232, RS-485
- Output Noise1 mV
- Sampling Rate240 KHz
- TypeAnalog, Digital
- Fiber Length100 Km
- FrequencyDC to 25 KHz
- Input Voltage-10 to 10 V
- Output Voltage Level-10 to 10 V
- Supply Voltage10 to 14 V
- Note :Adjustable Gain : 10 to 2000 dB
Technical Documents
- Datasheet
