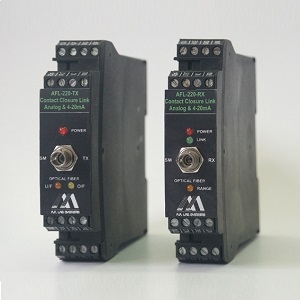

The AFL-220 from EMCgear is a Fiber Optic Link with Fiber Length 3 to 50 Km, Frequency DC to 5 KHz, Input Voltage 10 V, Noise Figure 72 dB (Signal to Noise ratio), Output Voltage Level 10 V. More details for AFL-220 can be seen below.
Product Specifications
Product Details
- Part NumberAFL-220
- ManufacturerEMCgear
- DescriptionDIN rail Analog/Contact Closure Fibre Optic Link
General Parameters
- Channels1 Channel, 2 Channels
- Current90 to 180 mA
- Input Impedance100 KOhms
- Output Noise1 mV
- Sampling Rate98 KHz
- TypeAnalog
- Fiber Length3 to 50 Km
- FrequencyDC to 5 KHz
- Input Voltage10 V
- Noise Figure72 dB (Signal to Noise ratio)
- Output Voltage Level10 V
- Supply Voltage9 to 28 V
Technical Documents
- Datasheet
