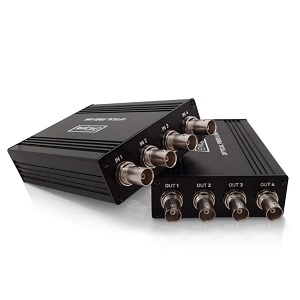

The EFL-A from EMCgear is a Fiber Optic Link with Frequency 10 MHz, Input Voltage 0 to 30 V (unipolar), -15 to 15 V (bipolar), Output Voltage Level 0 to 30 V (unipolar), -15 to 15 V (bipolar). More details for EFL-A can be seen below.
Product Specifications
Product Details
- Part NumberEFL-A
- ManufacturerEMCgear
General Parameters
- Bits12 bits
- Channels2 Channels, 4 Channels
- ConnectorsSMA
- Dimensions330 x 272 x 82 mm
- Input Impedance100 kOhm
- Operating Temperature0 to 55 Degree C
- Operating Time20 hours
- Output Impedance1 kOhm
- Sampling Rate100 kSa/s (4 channels), 200 kSa/s (2 channels)
- TypeAnalog
- Frequency10 MHz
- Input Voltage0 to 30 V (unipolar), -15 to 15 V (bipolar)
- Output Voltage Level0 to 30 V (unipolar), -15 to 15 V (bipolar)
