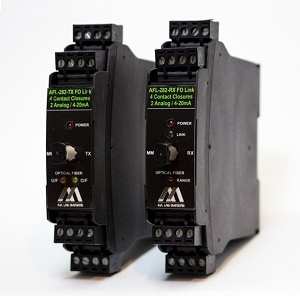

The AFL-282 from EMCgear is a Fiber Optic Link with Fiber Length 3 to 50 Km, Frequency DC to 10 KHz, Input Voltage 10 V, Noise Figure 84 dB (Signal to Noise ratio), Output Voltage Level 10 V. More details for AFL-282 can be seen below.

Product Specifications

Product Details

  • Part Number
    AFL-282
  • Manufacturer
    EMCgear
  • Description
    DIN rail Analog/Contact Closure Fibre Optic Link

General Parameters

  • Bits
    14 bit
  • Channels
    2 Channels, 4 Channels
  • Current
    160 to 275 mA
  • Input Impedance
    2 GOhms
  • Output Noise
    2 mV
  • Sampling Rate
    64 KHz
  • Type
    Analog
  • Fiber Length
    3 to 50 Km
  • Frequency
    DC to 10 KHz
  • Input Voltage
    10 V
  • Noise Figure
    84 dB (Signal to Noise ratio)
  • Output Voltage Level
    10 V
  • Supply Voltage
    10 to 28 V
