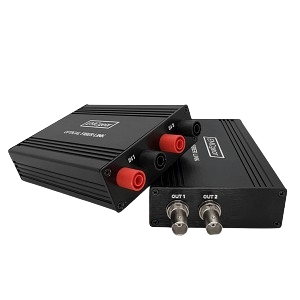

The EFL-I from EMCgear is a Fiber Optic Link with Input Voltage 40 V, Output Voltage Level 0 to 2.5 V (all unipolar variants), -1.25 to 1.25 V (all bipolar variants). More details for EFL-I can be seen below.
Product Specifications
Product Details
- Part NumberEFL-I
- ManufacturerEMCgear
General Parameters
- Bits12 bits
- Channels2 Channels
- ConnectorsSMA
- Operating Temperature0 to 55 Degree C
- Operating Time20 hours
- Sampling Rate200 kSa/s
- TypeAnalog
- Input Voltage40 V
- Output Voltage Level0 to 2.5 V (all unipolar variants), -1.25 to 1.25 V (all bipolar variants)
