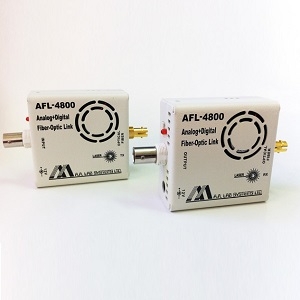

The AFL-4800 -25 MHz from EMCgear is a Fiber Optic Link with Dynamic Range 76 dB, Fiber Length 20 Km, Frequency DC to 25 MHz, Input Voltage 5 V, Output Voltage Level 5 V. More details for AFL-4800 -25 MHz can be seen below.
Product Specifications
Product Details
- Part NumberAFL-4800 -25 MHz
- ManufacturerEMCgear
- DescriptionHigh Speed Analog / Digital Fibre Optic Link
General Parameters
- Channels1 Channel, 2 Channels
- Current470 to 530 mA
- Dimensions61 x 61 x 28 mm
- Input Impedance1 KOhms, 50 Ohms
- Output Noise2 mV
- Sampling Rate125 MHz
- TypeAnalog, Digital
- Dynamic Range76 dB
- Fiber Length20 Km
- FrequencyDC to 25 MHz
- Input Voltage5 V
- Output Voltage Level5 V
- Supply Voltage7.5 to 12 V
Technical Documents
- Datasheet
