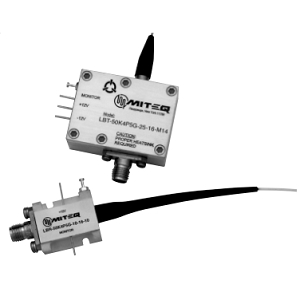

The LBL-10M4P5G from Narda-MITEQ is a Fiber Optic Link with Dynamic Range 106 dB, Frequency 10 to 4500 MHz, Gain 10 dB, Input Voltage 11 to 20 V(Rx), Noise Figure 12 dB. More details for LBL-10M4P5G can be seen below.
Product Specifications
Product Details
- Part NumberLBL-10M4P5G
- ManufacturerNarda-MITEQ
- Description50 kHz - 4.5 GHz LBL Fibre Optic Link
General Parameters
- ApplicationsAntenna Remoting, Local Oscillator Remoting, Interfacility Communication Links
- ConnectorsSMA, SMA - Female, FC/APC
- Current95 to 200 mA
- Gain flatness±2 dB
- Impedance50 Ohms
- IP3-4 dBm
- Operating Temperature-20 to 70 Degree C
- Optical Wavelength1550 nm
- Storage Temperature-40 to 85 Degree C
- VSWR2.00:1
- Dynamic Range106 dB
- Frequency10 to 4500 MHz
- Gain10 dB
- Input Voltage11 to 20 V(Rx)
- Noise Figure12 dB
- Output Power5 dBm
- Output Voltage Level11 to 20 V(Tx)
- P1dB-14 dBm
- Phase Noise110 dBc/Hz
- Supply Voltage-20 to 20 V
