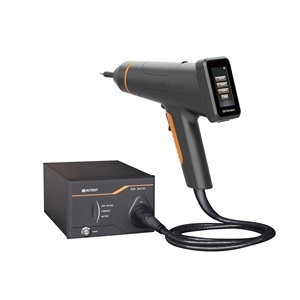

The EDS MAX30 from 3Ctest is a high-performance ESD Simulator that generates electrostatic discharge of up to 30 kV. It complies with ISO 10605, GB/T 19951, IEC 61000-4-2, and related standards. This simulator provides a voltage range of 0.2 kV to 30 kV (±5%) with 100 V resolution and a maintained time of 5 to 10 seconds. This ESD simulator has an integrated discharge gun, and 3.5-inch color touch screen to simplify control. This ESD simulator is compatible with both AC/DC (battery) power supply for easy deployment in diverse lab environments. It allows selection of multiple repetition frequencies ranging from a single shot to 20 Hz, with the ability to schedule up to four sequential test levels.

The EDS MAX30 has a TDC counting function to track discharges, a built-in temperature and humidity meter for environmental recording, and an automatic self-inspection mode to verify operation before testing. It supports both air (round head) and contact (pointed head) discharge electrodes using interchangeable tips as per IEC standards. The device has a small footprint of 207 × 160 × 310 mm and is ideal for a wide range of automotive and industrial ESD evaluations applications.
