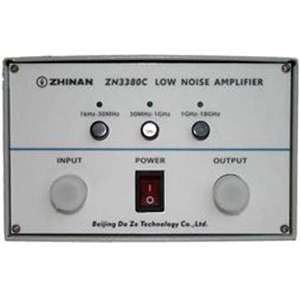

ZN3380C
EMC Pre-Amplifier by Beijing Daze Technology
Request Quote
Note: Your Quotation Request will be directed to Beijing Daze Technology.
The ZN3380C from Beijing Daze Technology is an EMC Pre-Amplifier that operates from 1 kHz to 18 GHz. It delivers a gain of up to 30 dB and can detect signals as low as -127 dBm. This preamplifier requires an AC supply of 220 V and consumes less than 10 W of power. It is available in an enclosure that measures 145 x 90 x 240 mm and is ideal for applications requiring wide dynamic range, such as shielding effectiveness testing.
Product Specifications
Product Details
- Part NumberZN3380C
- ManufacturerBeijing Daze Technology
- DescriptionEMC Pre-Amplifier from 1 kHz to 18 GHz
General Parameters
- Frequency1 kHz to 18 GHz
- Gain28 to 30 dB
- Gain flatness±2.5 dB
- TypeLow Noise Pre-Amplifier
- Sub CategoryLow Noise Amplifier
- Preamplifier Gain28 to 30 dB
- Impedance50 Ohms
- AC Voltage220 VAC
- Power Consumption10 W
- ConnectorsN Type
- Dimensions145 x 90 x 240 mm
- Weight3 kg
- ApplicationsShielding Effectiveness Testing
