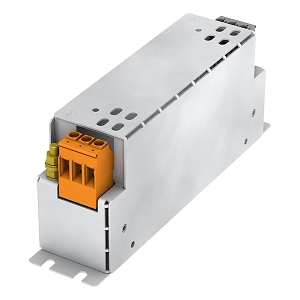

HLD 110-500/16
EMC / EMI Filter by BLOCK Transformatoren-Elektronik GmbH
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to BLOCK Transformatoren-Elektronik GmbH.
The HLD 110-500/16 from BLOCK Transformatoren-Elektronik GmbH is a EMC / EMI Filter with Current Rating 16 A, Frequency 50 to 60 Hz, Leakage Current 21 to 205 mA, Voltage Rating 300 to 520 V(Rated Voltage AC). More details for HLD 110-500/16 can be seen below.
Product Specifications
Product Details
- Part NumberHLD 110-500/16
- ManufacturerBLOCK Transformatoren-Elektronik GmbH
- Description3-phase, Radio Interference Suppression Filter
General Parameters
- Dimensions75 x 45 x 250 mm(W x H x D)
- Operating Temperature-25 to 50 Degree C
- Package TypeScrew Mount
- RoHSYes
- TypePower Line Filter
- Weight1.2 Kg
- Current Rating16 A
- Frequency50 to 60 Hz
- Leakage Current21 to 205 mA
- Voltage Rating300 to 520 V(Rated Voltage AC)
- Note :Power loss : 12 W
Technical Documents
- Datasheet
