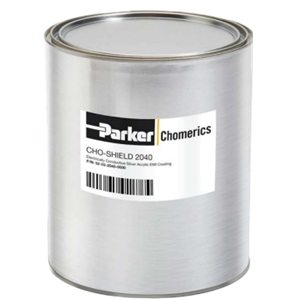

CHO-SHIELD 2040
Conductive Coating and Paint by Parker HannifinThe CHO-SHIELD 2040 from Parker Hannifin is a Conductive Coating and Paint with Density 1.2 Kg/L, Shielding Effectiveness 80 dB, Solid Content 0.4. More details for CHO-SHIELD 2040 can be seen below.
Product Specifications
Product Details
- Part NumberCHO-SHIELD 2040
- ManufacturerParker Hannifin
- DescriptionElectrically Conductive Silver Acrylic Paint
General Parameters
- ApplicationsElectrically Conductive Silver Acrylic EMI Coating
- ColorSilver
- Coverage0.0060 m²/L
- FillerSilver
- Operating Temperature-40 to 85 Degree C
- Polymer MatrixAcrylic
- Shelf Life12 Months
- Spray Viscosity16 to 22 seconds
- Surface Resistance0.025 Ohm/sq
- Total VOC741 Kg/L
- Weight4238 g
- Density1.2 Kg/L
- Shielding Effectiveness80 dB
- Solid Content0.4
Technical Documents
- Datasheet
