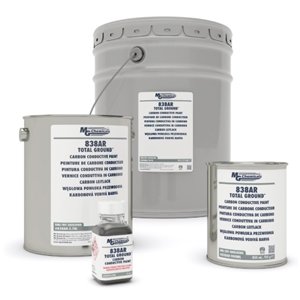

838AR-900ML
Conductive Coating and Paint by M.G. ChemicalsThe 838AR-900ML from M.G. Chemicals is a Conductive Coating and Paint with Density 0.89 Kg/L, Shielding Effectiveness 52 dB, Solid Content 0.15, Thickness 25 to 50 µm, Viscosity 114 cP. More details for 838AR-900ML can be seen below.
Product Specifications
Product Details
- Part Number838AR-900ML
- ManufacturerM.G. Chemicals
- DescriptionCarbon Conductive Paint
General Parameters
- ApplicationsShielding Metal detectors
- ColorLuscious Black
- Coverage2.0016 m²/L
- FillerCarbon
- Net Volume850 ml
- Operating Temperature-4 to 120 Degree C
- Polymer MatrixAcrylic
- Resistivity0.63 Ohms-cm
- Surface Resistance100 Ohm/sq
- Total VOC519 Kg/L
- Weight755 g
- Density0.89 Kg/L
- Shielding Effectiveness52 dB
- Solid Content0.15
- Thickness25 to 50 µm
- Viscosity114 cP
Technical Documents
- Datasheet
