839-1G

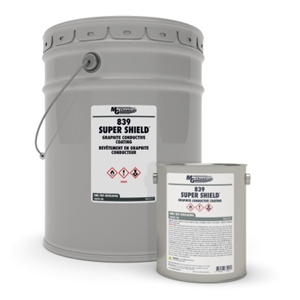

Conductive Coating and Paint by M.G. ChemicalsThe 839-1G from M.G. Chemicals is a Conductive Coating and Paint with Density 1.0 Kg/L, Solid Content 0.39, Thickness 25 to 50 µm, Viscosity 9500 cP. More details for 839-1G can be seen below.
Product Specifications
Product Details
- Part Number839-1G
- ManufacturerM.G. Chemicals
- DescriptionGraphite Conductive Paint
General Parameters
- ApplicationsPlastic/drywall conductivity, Room Shieklding Coating
- ColorDeep Gray Hue
- Coverage7.63 m²/L
- FillerGraphite
- Net Volume3.6 L
- Operating Temperature-4 to 120 Degree C
- Polymer MatrixAcrylic
- Resistivity0.28 Ohms-cm
- Surface Resistance28 Ohm/sq
- Total VOC516 Kg/L
- Weight3.58 kg
- Density1.0 Kg/L
- Solid Content0.39
- Thickness25 to 50 µm
- Viscosity9500 cP
Technical Documents
- Datasheet
