AC1224-240-5
Anechoic Chamber by mmWave Test Solutions
Request Quote
Note: Your Quotation Request will be directed to mmWave Test Solutions.

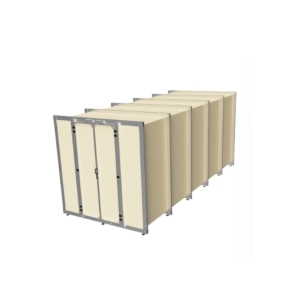

The AC1224-240-5 from mmWave Test Solutions is a Anechoic Chamber with Frequency 2 to 110 GHz. More details for AC1224-240-5 can be seen below.
Product Specifications
Product Details
- Part NumberAC1224-240-5
- ManufacturermmWave Test Solutions
- DescriptionPanel-based modular test chambers 2 to 110 GHz
General Parameters
- TypeFully Anechoic Chamber
- Test Distance3 m, 5 m, 10 m
- Frequency2 to 110 GHz
- AbsorberPyramidal Absorbers
- Application IndustryCommunication Systems
- Shielded Panel TypePlywood Panel
- Internal Dimensions219 x 219 x 585 cm
- External Dimensions264 x 270 x 620 cm(W x H x L)
- Note :Reflection loss : 25 to 52 dB
