foRS232

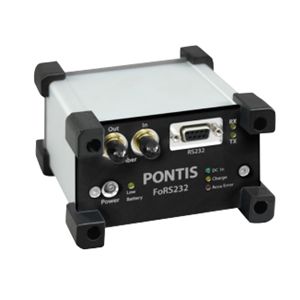

Shielded Fiber Optic Converter by PONTIS EMCThe foRS232 from PONTIS EMC is a Shielded Fiber Optic Converter with Fiber Length 500, 1000 m, Frequency 150 KHz to 4 GHz, Supply Voltage 12 V. More details for foRS232 can be seen below.
Product Specifications
Product Details
- Part NumberfoRS232
- ManufacturerPONTIS EMC
- DescriptionFiber Optic Converter
General Parameters
- ApplicationsTest and Measurement
- ConnectorsD-Sub 9, RS232
- Core/Cladding Size50/125 µm
- Current2A
- Data Rateup to 250 KBaud
- Dimensions140 x 116 x 72 mm (LxWxH)
- DirectionalityBidirectional
- Fiber ModeMultimode
- Operating Temperature0 to 40 Degree C
- Operating Timeup to 30 h
- Optical ConnectorsST, FSM
- Optical Wavelength850 nm
- PackageRack Mount
- Weight0.7 Kg
- Fiber Length500, 1000 m
- Frequency150 KHz to 4 GHz
- Supply Voltage12 V
Technical Documents
- Datasheet
