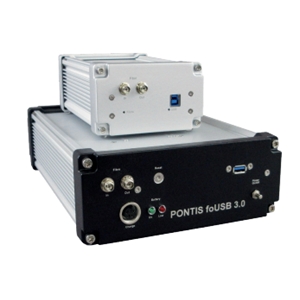

The foUSB from PONTIS EMC is a Shielded Fiber Optic Converter with Fiber Length Up to 500 m, Frequency 150 KHz to 4 GHz, Supply Voltage 50 V. More details for foUSB can be seen below.
Product Specifications
Product Details
- Part NumberfoUSB
- ManufacturerPONTIS EMC
- DescriptionFiber Optic Converter
General Parameters
- ApplicationsTest and Measurement
- ConnectorsUSB 3.1, 2.0, 1.1
- Core/Cladding Size50/125 µm
- Current1A
- Data Rateup to 5 Gbps
- Dimensions292 x 214 x 90 mm (LxWxH) (client unit), 170 x 127 x 80 mm (LxWxH) (host unit)
- DirectionalityBidirectional
- Electric Field Strength200 V/m
- Fiber ModeSinglemode
- Operating Temperature0 to 40 Degree C
- Optical ConnectorsST, FSM
- Optical Wavelength850 nm
- PackageRack Mount
- Weight2.5 Kg (host unit), 3 Kg (client unit)
- Fiber LengthUp to 500 m
- Frequency150 KHz to 4 GHz
- Supply Voltage50 V
Technical Documents
- Datasheet
