60-00-7424

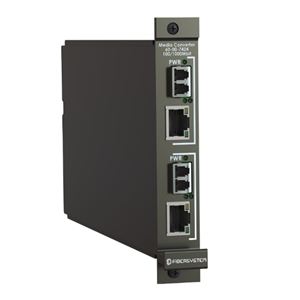

Shielded Fiber Optic Converter by Fibersystem ABThe 60-00-7424 from Fibersystem AB is a Shielded Fiber Optic Converter with Fiber Optic Range Up to 5 km, Supply Voltage 9 to 36 V. More details for 60-00-7424 can be seen below.
Product Specifications
Product Details
- Part Number60-00-7424
- ManufacturerFibersystem AB
- DescriptionEthernet Fiber Optical Dual Converter 100 Mbps/1 Gbps
General Parameters
- Channels2 Channel
- ConnectorsRJ-45
- Core/Cladding Size50/125 μm, 62.5/125 μm
- Data Rate100 Mbps, 1 Gbps
- Dimensions115 x 20 x 195 mm (H x W x D)
- DirectionalityBidirectional
- Fiber ModeMultimode, Single mode
- Operating Temperature10 to 40 Degree C
- Optical ConnectorsLC
- Optical Wavelength850 nm, 1300 nm
- PackageRack Mount
- Storage Temperature0 to 70 Degree C
- Weight0.15 Kg
- Fiber Optic RangeUp to 5 km
- Supply Voltage9 to 36 V
