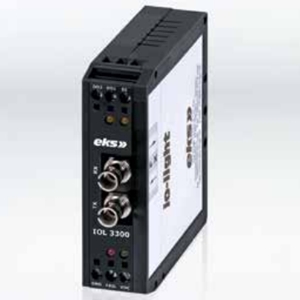

The 03300 2301 from EKS is a Shielded Fiber Optic Converter with Fiber Length 1 m, Fiber Optic Range 50 m, Supply Voltage 12 to 30 V. More details for 03300 2301 can be seen below.
Product Specifications
Product Details
- Part Number03300 2301
- ManufacturerEKS
- DescriptionTransmitter Fiber Optic Converter
General Parameters
- ApplicationsPoint to Point Communication
- Channels1 Channel
- Core/Cladding Size980 / 1000 µm
- Current100 mA
- Dimensions22.5 x 93 x 82 mm
- DirectionalityBidirectional
- Fiber ModeMultimode
- Fiber TypePOF
- Operating Temperature-20 to 55 Degree C
- Optical budget12 dB
- Optical ConnectorsST
- Optical Wavelength650 nm
- PackageRack Mount
- Power Consumption2.5 W
- Weight150 g
- Fiber Length1 m
- Fiber Optic Range50 m
- Supply Voltage12 to 30 V
