31002323--BIDI

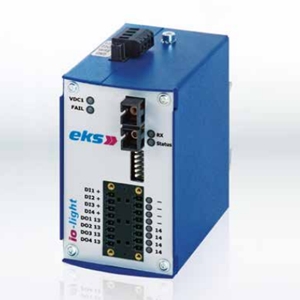

Shielded Fiber Optic Converter by EKSThe 31002323--BIDI from EKS is a Shielded Fiber Optic Converter with Fiber Length 1 m, Fiber Optic Range 5 Km, Supply Voltage 12 to 30 V. More details for 31002323--BIDI can be seen below.
Product Specifications
Product Details
- Part Number31002323--BIDI
- ManufacturerEKS
- DescriptionDigital Transmitter Fiber Optic Converter
General Parameters
- ApplicationsPoint to Point Communication
- Channels4 Channel
- Connectors16-pole terminal
- Core/Cladding Size62.5/125 μm
- Current200 mA
- Dimensions60 x 100 x 113 mm
- DirectionalityBidirectional
- Fiber ModeMultimode
- Operating Temperature-40 to 70 Degree C
- Optical budget12 dB
- Optical ConnectorsSC
- Optical Wavelength1310 nm, 1550 nm
- PackageRack Mount
- Power Consumption5 W
- Weight570 g
- Fiber Length1 m
- Fiber Optic Range5 Km
- Supply Voltage12 to 30 V
Technical Documents
- Datasheet
