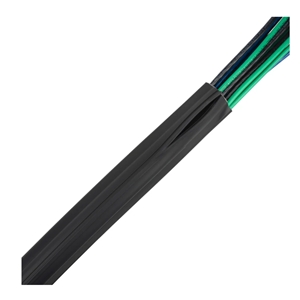

ZT97-17-170-0.375-B-B
EMI Cable Shields & Sleeves by Zippertubing
Request Quote
Note: Your Quotation Request will be directed to Zippertubing.
The ZT97-17-170-0.375-B-B from Zippertubing is a EMI Cable Shields & Sleeves with Diameter 9.525 mm, Thickness 0.0889 mm to 0.1143 mm. More details for ZT97-17-170-0.375-B-B can be seen below.
Product Specifications
Product Details
- Part NumberZT97-17-170-0.375-B-B
- ManufacturerZippertubing
- DescriptionCable Bundling with EMI Shielding
General Parameters
- TypeWrap Around Sleeve
- ApplicationsMilitary
- ColorBlack
- FillerNickel Plated Copper
- Flame ResistanceUL 94 V-0
- Operating Temperature-38 to 90 Degree C
- Polymer MatrixPFR-18, Sewn
- Shelf Life60 months
- StandardsMil-C-27072 Mil-C-13777 Mil-I-3930/21
- Diameter9.525 mm
- Thickness0.0889 mm to 0.1143 mm
