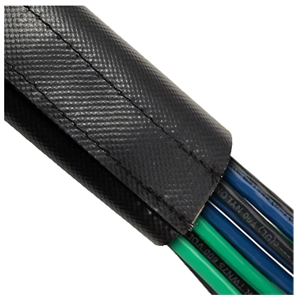

ZT03-13-001-0.5-B-B
EMI Cable Shields & Sleeves by Zippertubing
Request Quote
Note: Your Quotation Request will be directed to Zippertubing.
The ZT03-13-001-0.5-B-B from Zippertubing is a EMI Cable Shields & Sleeves with Diameter 12.7 mm, Thickness 0.889 mm to 1.143 mm. More details for ZT03-13-001-0.5-B-B can be seen below.
Product Specifications
Product Details
- Part NumberZT03-13-001-0.5-B-B
- ManufacturerZippertubing
- DescriptionPolyamide Rugged EMI Shielded Cable Bundling
General Parameters
- TypeWrap Around Sleeve
- ApplicationsMilitary
- ColorWhite
- ClosureHook and Loop (Velcro)
- Operating Temperature-54 to 77 Degree C
- Polymer MatrixBonded, twisted Polyamide laments, Sewn
- Shelf Life36 months
- StandardsMIL-DTL-83528H, Mil-C-20696 / Mil PRF-20696, Type II, Class 2
- Diameter12.7 mm
- Thickness0.889 mm to 1.143 mm
