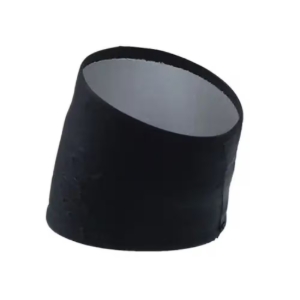

71-04-7131-0000
EMI Cable Shields & Sleeves by Parker Hannifin
Request Quote
Note: Your Quotation Request will be directed to Parker Hannifin.
The 71-04-7131-0000 from Parker Hannifin is a EMI Cable Shields & Sleeves with Diameter 51.82 mm, Shielding Effectiveness 50 to 60 dB. More details for 71-04-7131-0000 can be seen below.
Product Specifications
Product Details
- Part Number71-04-7131-0000
- ManufacturerParker Hannifin
- DescriptionPolyolefin based Heat Shrink Boots
General Parameters
- TypeHeat Shrink Boots
- ApplicationsMilitary
- Dielectric Strength200 VAC/mil
- Durometer50 ± 10 Shore D
- FillerSilver Plated Copper
- Flame ResistanceUL VW-1
- Operating Temperature-54 to 135 Degree C
- Polymer MatrixPolyolefin
- Shelf Life2 Years
- StandardsMIL-DTL-5015, MIL-DTL-26482
- Diameter51.82 mm
- Shielding Effectiveness50 to 60 dB
