70-42-0002-0004
EMI Cable Shields & Sleeves by Parker Hannifin
Request Quote
Note: Your Quotation Request will be directed to Parker Hannifin.
The 70-42-0002-0004 from Parker Hannifin is a EMI Cable Shields & Sleeves with Diameter 3.18 mm, Shielding Effectiveness 50 to 60 dB, Thickness 0.51 mm. More details for 70-42-0002-0004 can be seen below.
Product Specifications
Product Details
- Part Number70-42-0002-0004
- ManufacturerParker Hannifin

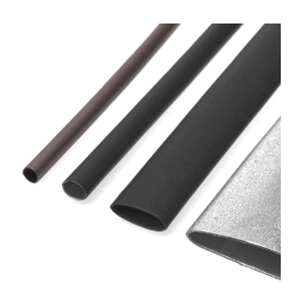

- DescriptionPolyolefin based Heat Shrink Tubing
General Parameters
- TypeHeat Shrink Tubing
- Dielectric Strength200 VAC/mil
- Durometer50 ± 10 Shore D
- FillerSilver Plated Copper
- Flame ResistanceUL VW-1
- Length1.22 m
- Operating Temperature-54 to 135 Degree C
- Polymer MatrixPolyolefin
- Shelf Life2 Years
- Diameter3.18 mm
- Shielding Effectiveness50 to 60 dB
- Thickness0.51 mm
