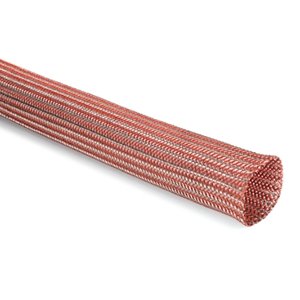

HEGEMIP-HY50
EMI Cable Shields & Sleeves by HellerMannTytonThe HEGEMIP-HY50 from HellerMannTyton is a EMI Cable Shields & Sleeves with Diameter 40 mm, Frequency 10 KHz to 1 GHz. More details for HEGEMIP-HY50 can be seen below.
Product Specifications
Product Details
- Part NumberHEGEMIP-HY50
- ManufacturerHellerMannTyton
- DescriptionPolyester based Electromagnetic protection braided sleeving for hybrid automobiles
General Parameters
- TypeBraided Sleeve
- CertificationsROHS, REACH
- ColorSilver, Orange
- FillerTin Plated Copper
- Operating Temperature-40 to 150 Degree C
- Polymer MatrixPolyester
- StandardsIEC CISPR25
- Weight204 gm
- Diameter40 mm
- Frequency10 KHz to 1 GHz
