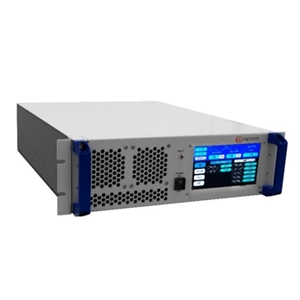

The AMP40045 from Exodus Advanced Communications is a Solid-State Power Amplifier that operates from 40 to 50 GHz. Designed for V-Band CW & Pulse power applications, this SSPA delivers an output power of more than 4 Watts with a power gain of 36 dB and a power gain flatness 6.0 dB p-p. It is based on a Class A/AB linear design, ensuring high efficiency, exceptional reliability, and rugged construction. The amplifier has spurious levels of less than &ndash60 dBc and harmonics of &ndash20 dBc. It also has a two-tone intermodulation distortion (IMD) of &ndash30 dBc and an input return loss of less than &ndash10 dB.

The AMP40045 integrates built-in protection circuits and provides extensive monitoring of critical parameters such as VSWR, voltage, and current, all accessible via a local LCD. It supports multiple interfaces, including RJ-45, TCP/IP, RS-422/485, USB, and GPIB for remote operation and control. The amplifier requires an AC supply of 100- 240 V, consuming less than 600 W power. It is available in a 3U rack-mount module that measures 430 x 133 x 560 mm and has 2.4 mm connectors and a WR22 waveguide interface. This amplifier is ideal for EMI/RFI testing, laboratory use, and IEC testing applications.
