AMP20126
EMC Power Amplifiers by Exodus Advanced CommunicationsNote: Your Quotation Request will be directed to Exodus Advanced Communications.

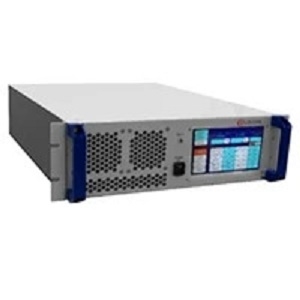

The AMP20126 from Exodus Advanced Communications is a Solid-State EMC Power Amplifier that operates from 1 to 1000 MHz. It delivers a saturated output power of more than 200 W and a power gain of more than 53 dB. This amplifier is based on a Class A/AB linear design and delivers exceptional efficiency, reliability, and ruggedness. It has an input return loss of less than -10 dB and a 2-tone intermodulation (IMD) of -30 dBc.
Product Specifications
Product Details
- Part NumberAMP20126
- ManufacturerExodus Advanced Communications
- DescriptionSolid-State EMC Power Amplifier from 1 to 1000 MHz
General Parameters
- Frequency1 to 1000 MHz
- Gain53 dB
- Gain Control Range`20 dB
- Gain flatness4 dB
- Power (dBm)50.79 to 53.01 dBm
- Power (W)120 to 200 W
- P1dB (dBm)50.79 to 51.76 dBm
- Saturated Power53 dBm
- Input Power10 dBm
- TypeSolid State Power Amplifier
- AC Voltage100 to 240 V
- Power Consumption1500 to 2000 W
- Impedance50 Ohms
- Return Loss-10 dB
- Input Return Loss-10 dB
- VSWR4.00:1
- EMC StandardsIEC 60320-C14
- InterfaceEthernet, RJ-45, RS-422, RS-485, USB
- ApplicationsEMI/RFI Lab, General RF/EMC Testing
- Package TypeBenchtop / Rackmount
- ConnectorsN Type, N Type - Female
- Input ConnectorN Type - Female
- Output connectorN Type - Female
- Cooling OptionsBuilt-in Fan Cooling, Air Cooled
- Weight20 kg
- Operating Temperature0 to 50 Degree C
- Storage Temperature-40 to 85 Degree C
Technical Documents
- Datasheet
