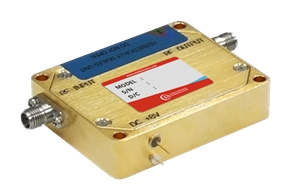

The AMP30039 from Exodus Advanced Communications is an EMC Power Amplifier that operates from 26.5 to 40 GHz. It delivers an output power of more than 30 dBm with a linear gain of over 36 dB. This coax power amplifier has a noise figure of 6 dB and a VSWR of 2:1. It has a Class A linear design ensuring unconditional stability and low distortion, and an internal voltage regulator. This amplifier requires a DC supply of 8 V and consumes less than 4.6 A of current. It is available in an enclosure that measures 60 x 60 x 15 mm and has 2.92 mm (K-Female) RF connectors.

Product Specifications

Product Details

  • Part Number
    AMP30039
  • Manufacturer
    Exodus Advanced Communications
  • Description
    Coax EMC Power Amplifier from 26.5 to 40 GHz

General Parameters

  • Frequency
    26.5 to 40 GHz
  • Gain
    36 dB
  • Gain flatness
    ±2.2 to ±3.5 dB
  • Power (dBm)
    30 dBm
  • Power (W)
    1 W
  • Type
    Power Amplifier
  • VSWR
    2.00:1
  • Input Connector
    2.92 mm
  • Output connector
    2.92 mm, K - Female
  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    40 to 70 Degree C
