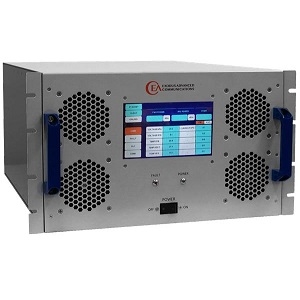

The AMP20084 from Exodus Advanced Communications is a Solid State EMC Power Amplifier that operates from 80 to 1000 MHz. It delivers a saturated output power of more than 750 W (CW/Pulsed) with a gain of over 60 dB. This SSPA is based on the Class A/AB linear amplifier design that achieves high efficiency with unprecedented reliability and ruggedness. It has spurious levels of up to -60 dBc and harmonics of less than -20 dBc.

The AMP20084 is equipped with protection circuits and extensive monitoring capabilities to monitor parameters such as voltage, current, and VSWR via a local LCD panel. This power amplifier also uses built-in remote flexible interfaces &ndash Ethernet RJ-45 TCP/IP, RS422/RS485, USB, and GPIB for communication and control. It requires an AC supply of 180-240 V and consumes less than 4 kW of power. This power amplifier is available in a rack-mount enclosure that measures 430 x 222 x 700 mm and has N-type (female) & 7/16 (female) connectors. It is ideal for EMI/RFI labs, CW/pulse signal generation, and communication applications.
