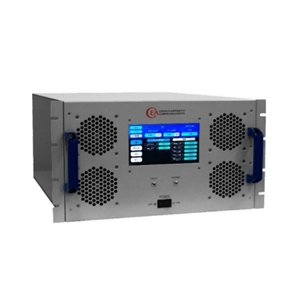

AMP20025
EMC Power Amplifiers by Exodus Advanced Communications
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Exodus Advanced Communications.
Product Specifications
Product Details
- Part NumberAMP20025
- ManufacturerExodus Advanced Communications
- DescriptionBroadband 150 W Amplifier designed for EMI/RFI and Communication Testing
General Parameters
- Frequency2.5 to 6 GHz
- Gain52 dB
- Gain Control Range`20 dB
- Gain flatness±1.5 dB
- Power (W)100 to 150 W
- P1dB (dBm)50
- P1dB (W)100
- Input Power10 dB Max
- TypePower Amplifier
- Transistor TechnologyLDMOS, Solid-State Design
- AC Voltage100 to 240 VAC
- Impedance50 Ohms
- Return Loss-10 dB Max
- VSWR4:1 Max
- Interface9-Pin D Sub, Ethernet RJ-45 TCP/IP, USB, Optional GPIB
- ApplicationsCW/Pulse and all communication applications, Broadband EMI/RFI, Laboratory
- Package TypeBenchtop / Rackmount
- ConnectorsN Type, N Type - Female
- Input ConnectorN Type, N Type - Female
- Output connectorN Type, N Type - Female
- Cooling OptionsBuilt-in Quiet-Cool Close Circuit Air-Liquid Cooling
- Weight32 Kg
- Operating Temperature0 to +50 °C
Technical Documents
- Datasheet
