DA9K100M5555AC

EMC Power Amplifiers by Elite RF
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Elite RF.

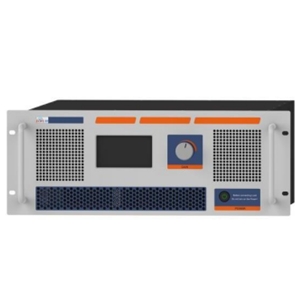

The DA9K100M5555AC from Elite RF is an EMC Solid-State Power Amplifier that operates from 9 kHz to 100 MHz. It delivers a CW output power of more than 400 W and a gain of 56 dB. This amplifier has harmonics of less than -18 dBc and spurious signal levels of less than -60 dB with an input VSWR of less than 2:1. It requires an AC supply of 100-240 V and consumes less than 2100 W of power. This power amplifier can be controlled remotely via LAN or USB interfaces and manually via the front panel touchscreen display. It is available in a 4U rackmount enclosure that measures 482 x 177 x 560 mm and has N female connectors for RF input/output.

Product Specifications

Product Details

  • Part Number
    DA9K100M5555AC
  • Manufacturer
    Elite RF
  • Description
    EMC Solid-State Power Amplifier from 9 kHz to 100 MHz

General Parameters

  • Frequency
    9 kHz to 100 MHz
  • Gain
    56 dB
  • Gain flatness
    ±3 dB
  • Power (dBm)
    56.02 dBm
  • Power (W)
    400 W
  • Input Power
    5 dBm
  • Type
    Solid State Power Amplifier
  • AC Voltage
    100 to 240 V
  • Power Consumption
    2100 W
  • Impedance
    50 Ohms
  • VSWR
    2.00:1
  • Interface
    LAN, USB
  • Applications
    Test & Measurement, Wireless Communication, EMC
  • Package Type
    Rack Mount
  • Input Connector
    N Type - Female
  • Output connector
    N-Type Female
  • Cooling Options
    Built-in Fan Cooling, Air Cooled
  • Weight
    40 kg
  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
