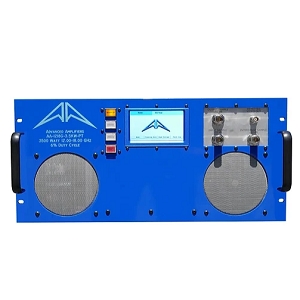

AA-1218G-3.5KW-PT
EMC Power Amplifiers by Advanced Amplifiers
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Advanced Amplifiers.
The AA-1218G-3.5KW-PT from Advanced Amplifiers is a EMC Power Amplifiers with Frequency 12 to 18 GHz, Gain 64 dB, Power (dBm) 65.44 dBm, Power (W) 3500 W, AC Voltage 220 V. More details for AA-1218G-3.5KW-PT can be seen below.
Product Specifications
Product Details
- Part NumberAA-1218G-3.5KW-PT
- ManufacturerAdvanced Amplifiers
- Description3500 W Travelling Wave Tube Amplifier from Frequency 12 to 18 GHz
General Parameters
- Frequency12 to 18 GHz
- Gain64 dB
- Power (dBm)65.44 dBm
- Power (W)3500 W
- TypeTravelling Wave Tube Amplifier
- AC Voltage220 V
- Power Consumption1.4 kVA
- Pulse Width0.1 µs
- VSWR2.00:1
- InterfaceEthernet, LAN, RS-232, RS-422
- Package TypeBenchtop / Rackmount
- WaveguideWR-62
- ConnectorsN Type, N Type - Female, BNC, BNC - Female
- Input ConnectorN Type - Female
- Output connectorBNC - Female
- Cooling OptionsBuilt-in Fan Cooling, Air Cooled
- Weight38.55 kg
- Operating Temperature0.1 to 50 Degree C
- Storage Temperature-40 to 85 Degree C
- Note :Form Factor : 5U, Ripple : ±0.1 dB, Peak Power : 64 dBm, Spurious : -60 to -55 dBc, Gain Stability : 0.25 dB, Pulse Jittrer : ±2 nS, Control : TTL
Technical Documents
- Datasheet
