56-733-036

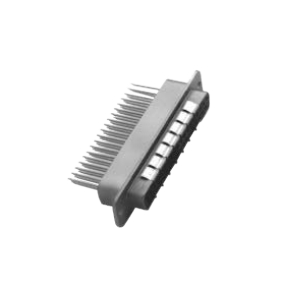

EMI Filtered Connector by Spectrum ControlThe 56-733-036 from Spectrum Control is a EMI Filtered Connector with 3 dB Cut-off Frequency 14 MHz, Capacitance 375 pF, Contact Resistance 10 mohms, Current Rating 5 A, Dielectric Withstanding Voltage 600 V. More details for 56-733-036 can be seen below.
Product Specifications
Product Details
- Part Number56-733-036
- ManufacturerSpectrum Control
- Description37 Pins D-Sub Female EMC Filtered Connector
General Parameters
- ApplicationsCommercial Aerospace, Weapons, Military Aircraft, Medical Electronics, Industrial Process Equipment, Peripheral And Terminal Equipment, Cellular Base Stations, Graphics Workstations
- Capacitance Tolerance±20%
- Contact GenderFemale
- Filter TopologyC
- Impedance50 Ohms
- Insertion Loss2 to 32 dB
- Insertion Loss @ 1 GHz32 dB
- Insertion Loss @ 100 MHz12 dB
- Insertion Loss @ 20 MHz2 dB
- Insertion Loss @ 200 MHz18 dB
- Insertion Loss @ 50 MHz7 dB
- Insertion Loss @ 500 MHz26 dB
- InsulatorsGlass Filled Polyester
- Mounting StylePCB Mount
- Number of Contacts37
- Operating Temperature-55 to 125 Degree C
- Pin Contacts MaterialCopper alloy
- RF Current Rating0.3 A
- Shell MaterialZinc or Aluminum
- Socket Contacts MaterialCopper alloy
- Socket Contacts PlatingGold Plated
- StandardsMIL-T-10727
- TerminationSocket to straight PCB mount
- TypeD-Sub
- 3 dB Cut-off Frequency14 MHz
- Capacitance375 pF
- Contact Resistance10 mohms
- Current Rating5 A
- Dielectric Withstanding Voltage600 V
- Working Voltage200 V
