56F733-017

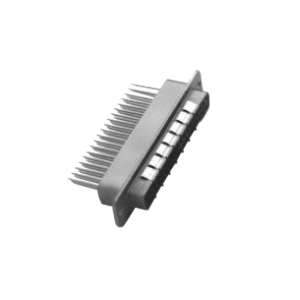

EMI Filtered Connector by Spectrum ControlThe 56F733-017 from Spectrum Control is a EMI Filtered Connector with 3 dB Cut-off Frequency 3.2 MHz, Capacitance 1000 pF, Contact Resistance 10 mohms, Current Rating 5 A, Dielectric Withstanding Voltage 600 V. More details for 56F733-017 can be seen below.
Product Specifications
Product Details
- Part Number56F733-017
- ManufacturerSpectrum Control
- Description37 Pins D-Sub Female EMC Filtered Connector
General Parameters
- ApplicationsCommercial Aerospace, Weapons, Military Aircraft, Medical Electronics, Industrial Process Equipment, Peripheral And Terminal Equipment, Cellular Base Stations, Graphics Workstations
- Capacitance Tolerance+100-0%
- Contact GenderFemale
- Filter TopologyC
- Impedance50 Ohms
- Insertion Loss4 to 42 dB
- Insertion Loss @ 1 GHz42 dB
- Insertion Loss @ 10 MHz4 dB
- Insertion Loss @ 100 MHz22 dB
- Insertion Loss @ 20 MHz9 dB
- Insertion Loss @ 200 MHz28 dB
- Insertion Loss @ 50 MHz16 dB
- Insertion Loss @ 500 MHz36 dB
- InsulatorsGlass Filled Polyester
- Mounting StylePCB Mount
- Number of Contacts37
- Operating Temperature-55 to 125 Degree C
- Pin Contacts MaterialCopper alloy
- RF Current Rating0.3 A
- RoHSYes
- Shell MaterialZinc or Aluminum
- Socket Contacts MaterialCopper alloy
- Socket Contacts PlatingGold Plated
- StandardsMIL-T-10727
- TerminationSocket to straight PCB mount
- TypeD-Sub
- 3 dB Cut-off Frequency3.2 MHz
- Capacitance1000 pF
- Contact Resistance10 mohms
- Current Rating5 A
- Dielectric Withstanding Voltage600 V
- Working Voltage200 V
