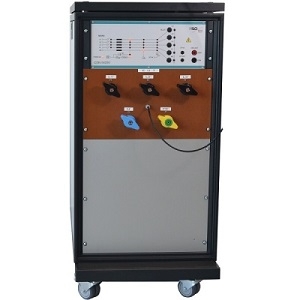

CDN 104200
Coupling Decoupling Network by HILO-TestThe CDN 104200 from HILO-Test is a Coupling Decoupling Network with Operating Voltage 90 to 264 VAC, Burst Voltage 5 kV, Surge Voltage 10 kV, Operating Current 200 A. More details for CDN 104200 can be seen below.
Product Specifications
Product Details
- Part NumberCDN 104200
- ManufacturerHILO-Test
- DescriptionCoupling / Decoupling Network
General Parameters
- Type3 Phase Power Supply line
- Pulse TypeSurge, EFT
- Cable TypeMain
- EMC StandardsIEC 61000-4-4, IEC 61000-4-5, IEEE 587
- Coupling Impedance9 to 18 uF (Surge Generator), 33 nF (Burst Generator)
- Series Inductors1.5 mH
- Operating Voltage90 to 264 VAC
- Burst Voltage5 kV
- Surge Voltage10 kV
- Operating Current200 A
- Surge Current5 kA
- Dimensions550 x 1100 x 800 mm
- Weight280 kg
Technical Documents
- Datasheet
