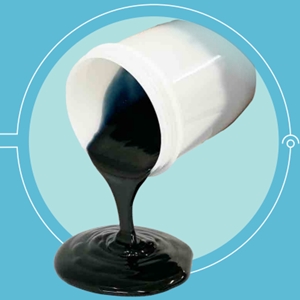

SP-801
Conductive Coating and Paint by Nagase ChemteX Corporation
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Nagase ChemteX Corporation.
The SP-801 from Nagase ChemteX Corporation is a Conductive Coating and Paint with Thickness 0.2 µm, Viscosity 1000 to 3000 cP. More details for SP-801 can be seen below.
Product Specifications
Product Details
- Part NumberSP-801
- ManufacturerNagase ChemteX Corporation
- DescriptionTransparent Conductive Coating
General Parameters
- ApplicationsTouch sensor, Touch switch, Film heater, Electromagnetic wave shield
- ColorDark Blue
- FillerPEDOT:PSS
- Operating Temperature80 to 140 Degree C
- Polymer MatrixConductive polymer, Binder resin
- Shelf Life12 Months
- Surface Resistance200 to 500 Ohm/sq
- Thickness0.2 µm
- Viscosity1000 to 3000 cP
Technical Documents
- Datasheet
