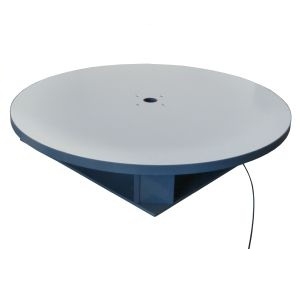

The CT1000 from Innoco Systems is a compact and cost-effective turntable designed for EMC testing of test objects weighing up to 75 kg (165 lbs). An optional configuration supports EUT weights of up to 150 kg (330 lbs), providing added flexibility for heavier test setups.

It features a modular, dismountable design that enables easy transportation and quick installation in laboratory or on-site environments. The turntable supports automated operation via the CO3000 controller or can be directly controlled through a PC using a USB interface, allowing seamless integration into EMC test systems.


Product Specifications

Product Details

  • Part Number
    CT1000
  • Manufacturer
    innco systems GmbH
  • Description
    Compact Turntable for EMC Testing Applications up to 75 kg

General Parameters

  • Type
    Rotary Positioners
  • Max Load Capacity
    75 kg
  • Measurement Height
    188 mm
  • Turnable Diameter
    1000 mm
  • Rotation Speed
    0.5 to 2 RPM
  • Position Range
    ±0.5° (Positioning accuracy)
  • Voltage
    115 / 230V AC (50/60 Hz)
  • Interface
    GPIB (IEEE 488) & LAN (TCP/IP), USB
  • Note :
    Material carrier plate: Kömacel, PVC-border-ring, weatherproof or Wood, Rotating Angle: ±200° or -20° to 380°, Operating Temperature: 0 to 40 Degree C, Current consumption: 16 A
View more details on the manufacturer's website
