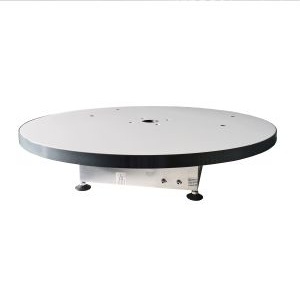

The CT0800 from Innoco Systems is a compact and cost-effective turntable designed for EMC testing of test objects weighing up to 75 kg (165 lbs). It features a modular, dismountable construction that allows for easy transportation and quick setup in laboratory or on-site test environments.

This turntable supports automated operation via the CO3000 controller or can be directly controlled through a PC using a USB interface, offering flexible integration into EMC test systems. It is ideal for use in radiated emissions and immunity testing applications where precise positioning and repeatability are required.


Product Specifications

Product Details

  • Part Number
    CT0800
  • Manufacturer
    innco systems GmbH
  • Description
    Compact Turntable for EMC Testing Applications up to 75 kg

General Parameters

  • Type
    Rotary Positioners
  • Max Load Capacity
    75 kg
  • Measurement Height
    188 mm
  • Turnable Diameter
    800 mm
  • Rotation Speed
    0.5 to 2 RPM
  • Position Range
    ±1° (Positioning accuracy)
  • Voltage
    115 / 230V AC (50/60 Hz)
  • Interface
    GPIB (IEEE 488) & LAN (TCP/IP), USB
  • Note :
    Material carrier plate: Kömacel, PVC-border-ring, weatherproof or Wood, Rotating Angle: ±200° or -20° to 380°, Operating Temperature: 0 to 40 Degree C, Current consumption: 16 A
