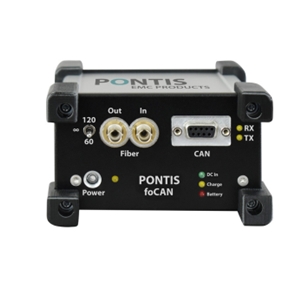

The foCAN from PONTIS EMC is a Shielded Fiber Optic Converter with Fiber Length 10 m, Frequency 200 MHz to 18 GHz, Supply Voltage 12 V. More details for foCAN can be seen below.
Product Specifications
Product Details
- Part NumberfoCAN
- ManufacturerPONTIS EMC
- DescriptionFiber Optic Converter
General Parameters
- ApplicationsTest and Measurement
- ConnectorsD-Sub 9, CAN bus
- Core/Cladding Size50/125 µm
- Current1A
- Data Rateup to 125 kBit/s, 20-1000 kBit/s
- Dimensions103 x 127 x 67 mm (LxWxH)
- DirectionalityBidirectional
- Electric Field Strength200 V/m, 600 V/m
- Fiber ModeMultimode
- Operating Temperature0 to 40 Degree C
- Operating Timeup to 30 h
- Optical ConnectorsST, FSM
- Optical Wavelength850 nm
- PackageRack Mount
- Supported ProtocolsCAN LS, HS/FD
- Weight0.8 kg
- Fiber Length10 m
- Frequency200 MHz to 18 GHz
- Supply Voltage12 V
Technical Documents
- Datasheet
