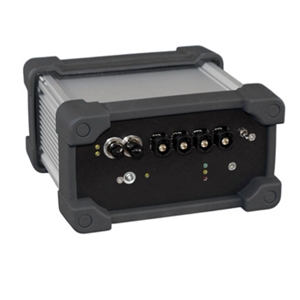

foBroadR-Reach
Shielded Fiber Optic Converter by PONTIS EMCThe foBroadR-Reach from PONTIS EMC is a Shielded Fiber Optic Converter with Fiber Length Up to 300 m, Frequency 200 MHz to 18 GHz, Supply Voltage 12 V. More details for foBroadR-Reach can be seen below.
Product Specifications
Product Details
- Part NumberfoBroadR-Reach
- ManufacturerPONTIS EMC
- DescriptionFiber Optic Ethernet Converter
General Parameters
- ApplicationsAutomotive Communication System Testing, Test and Measurement
- ConnectorsRJ-45, Rosenberger HSD
- Core/Cladding Size50 / 125 μm
- Data Rate1 GBit/s, 100 MBit/s
- Dimensions105 x 125 x 65 mm ( Lx W x H)
- DirectionalityBidirectional
- Electric Field Strength200 V/m
- Fiber ModeMultimode
- Fiber TypeDACAR 676
- Operating Temperature0 to 40 Degree C
- Operating Timeup to 30 h
- Optical ConnectorsST, FSM
- Optical Wavelength1300 nm
- PackageRack Mount
- Supported Protocols100BASE-T1, 1000BASE-T1
- Weight0.7 kg
- Fiber LengthUp to 300 m
- Frequency200 MHz to 18 GHz
- Supply Voltage12 V
Technical Documents
- Datasheet
