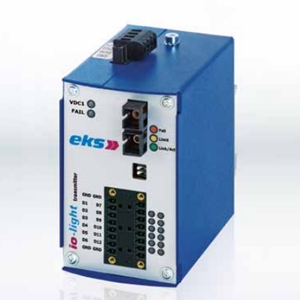

The 03200 1331 from EKS is a Shielded Fiber Optic Converter with Fiber Length 1 m, Fiber Optic Range 30 Km, Supply Voltage 12 to 30 V. More details for 03200 1331 can be seen below.
Product Specifications
Product Details
- Part Number03200 1331
- ManufacturerEKS
- DescriptionTransmitter Fiber Optic Converter
General Parameters
- ApplicationsPoint to Point Communication
- Channels12 Channel
- Connectors16-pole terminal
- Core/Cladding Size9/125 µm
- Current200 mA
- Dimensions60 x 100 x 113 mm
- DirectionalityUnidirectional
- Fiber ModeSinglemode
- Operating Temperature-40 to 70 Degree C
- Optical budget16 dB
- Optical ConnectorsST
- Optical Wavelength1310 nm
- PackageRack Mount
- Power Consumption5 W
- Weight570 g
- Fiber Length1 m
- Fiber Optic Range30 Km
- Supply Voltage12 to 30 V
Technical Documents
- Datasheet
