030002333 (IR)

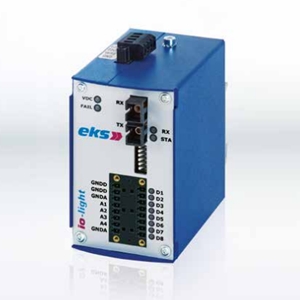

Shielded Fiber Optic Converter by EKSThe 030002333 (IR) from EKS is a Shielded Fiber Optic Converter with Fiber Length 1 m, Fiber Optic Range 30 km, Output Voltage Level 12 to 24 V (Digital), Supply Voltage 12 to 30 V. More details for 030002333 (IR) can be seen below.
Product Specifications
Product Details
- Part Number030002333 (IR)
- ManufacturerEKS
- Description8 x Digital 12–24 VDC Receiver Fiber Optic Converter
General Parameters
- ApplicationsPoint to Point Communication
- Channels8 Channel
- Connectors16-pole terminal
- Core/Cladding Size9/125 µm
- Current200 mA
- Dimensions60 x 100 x 113 mm
- DirectionalityUnidirectional
- Fiber ModeSinglemode
- Operating Temperature-40 to 70 Degree C
- Optical budget16 dB
- Optical ConnectorsSC
- Optical Wavelength1310 nm
- PackageRack Mount
- Power Consumption5 W
- Weight570 g
- Fiber Length1 m
- Fiber Optic Range30 km
- Output Voltage Level12 to 24 V (Digital)
- Supply Voltage12 to 30 V
Technical Documents
- Datasheet
