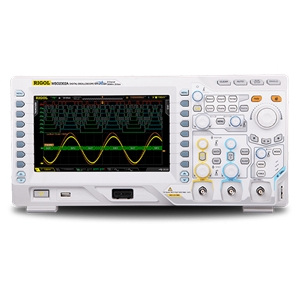

The MSO2202A from Rigol Technologies is a Oscilloscopes with AC Voltage 100 to 240 V, Bandwidth 200 MHz, Capacitance 9 pF, Memory Depth 7 to 56 Mpts, Sample rate 500 MSa/s to 2 GSa/s. More details for MSO2202A can be seen below.
Product Specifications
Product Details
- Part NumberMSO2202A
- ManufacturerRigol Technologies
- DescriptionMixed Signal Oscilloscope
General Parameters
- ADC Resolution12 bits
- Bandwidth Limit20 MHz, 100 MHz
- Channel Skew1 to 2 ns
- DC Current2 A (Fuse)
- DC Gain Accuracy±2%
- Dimensions361.6 x 179.6 x 130.8 mm (W x H x D)
- FFTYes
- Harmonic Distortion-40 dBc
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms, 101 kOhms, 50 Ohms
- InterfaceUSB, RS-232, I2C, SPI
- Low-Frequency Response5 Hz
- Offset Range±2 to ±100 V
- Operating Temperature0 to 50 Degree C
- Peak Detect1 ns to 500 ps
- Power Consumption50 W
- Pulse Width5 ns
- Rise Time1.8 ns
- Safety StandardsIEC 61010-1:2010, EN 61010-1:2010, UL 61010-1:2012 R4.16, CAN/CSA-C22.2 No. 61010-1-12+ GI1+ GI2
- Time Base Accuracy±15 ppm
- Time Base Range2 ns/div to 1 ks/div
- TriggerEdge, Pulse, Runt, Slope, Pattern, Setup/Hold
- TypeMixed Signal Oscilloscope
- Vertical Resolution8 bits
- Voltage Swing500 mVp-p
- Warranty3 Years
- Waveform Update Rates52000 wfms/s
- Weight3.9 Kg
- AC Voltage100 to 240 V
- Bandwidth200 MHz
- Capacitance9 pF
- Memory Depth7 to 56 Mpts
- Sample rate500 MSa/s to 2 GSa/s
