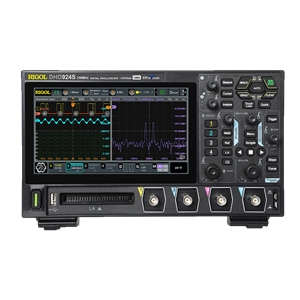

The DHO924 from Rigol Technologies is a Oscilloscopes with Bandwidth 250 MHz, Capacitance 15 pF, Input Voltage 15 V, Memory Depth 10 to 50 Mpts, Sample rate 312.5 MSa/s to 1.25 GSa/s. More details for DHO924 can be seen below.
Product Specifications
Product Details
- Part NumberDHO924
- ManufacturerRigol Technologies
- DescriptionDigital Storage Oscilloscope
General Parameters
- Acquisition ModeNormal, Peak Detection, Average Type
- ADC Resolution12 bits
- Bandwidth Limit20 MHz
- Channel Skew±5 to ±100 ns
- DC Current3 A
- DC Gain Accuracy±1 to ±2%
- Dimensions265.35 x 161.75 x 77.38 mm (W x H x D)
- Display7 Inches capacitive multi-touch screen
- FFTYes
- Input CouplingDC, AC, GND
- Input Impedance1 MOhms
- InterfaceUSB 2.0, HDMI, RS-232, UART, I2C, SPI
- Offset Range±0.5 to ±100 V
- Operating Temperature0 to 50 Degree C
- Peak Detect1.6 ns
- Power Consumption45 W
- Pulse Width5 ns
- Rise Time1.4 ns
- Safety StandardsEN 61010-1:2019, EN 61010-031:2015, IEC 61010-1:2016, IEC 61010-2-030:2017, UL 61010-1:2012 R7, UL 61010-2-31:2017 R2, CAN/CSA-22.2 No. 61010-1-12:2017, CAN/CSA-22.2 No. 61010-2-30:2018, CAN/CSA-22.2 No. 61010-031-07:201
- Spurious Free Dynamic Range-40 dBc
- Time Base Accuracy±25 ppm
- Time Base Range2 ns/div to 500 s/div
- TriggerEdge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold
- TypeDigital Storage Oscilloscope
- Vertical Resolution12 bits
- Voltage Swing500 mVp-p
- Warranty3 Years + 18 Months
- Waveform Update Rates30000 to 1000000 wfms/s
- Weight1.78 kg
- Bandwidth250 MHz
- Capacitance15 pF
- Input Voltage15 V
- Memory Depth10 to 50 Mpts
- Sample rate312.5 MSa/s to 1.25 GSa/s
